Pressure Washer Parts and Equipment in Lloydminster

Relay Distributing’s Team of Service Personnel has over 50 years of combined experience in the pressure wash industry. Not only do we custom design the highest quality equipment around, we also provide service and maintenance and stock a complete selection of parts and accessories for all the top brands of pressure washer equipment. Give us a call or visit our store in Lloydminster to see how we can look after all your industrial cleaning needs.



Custom High-Pressure Wash Systems

Our wash packages are designed with only the top quality components. The true nature of the design is to exhibit the best possible value for your dollar. Terms such as: weatherproof, stainless steel, aluminum, custom-built, and installation-included are rarely even mentioned by our competitors. We strive for long-term relationships; and by providing long lasting, high performance equipment and unmatched service, we hope to ensure just that.

Features of our wash systems:



Frame assembly
  • Custom-built heavy gauge aluminum stands.

  • No paint that will peel and no steel that will rust.

Stainless steel tank assembly
  • Stainless steel suction screens and water shut off valves.

  • Hydrominder proportioners for fail-safe diluting of products.

  • Equipped with a top-notch float valve.

Triplex plunger pump
  • Industry leading brands from all over the world, like the Italian General Pumps, or the Japanese Cat Pumps, we custom build with only the best.

  • Our custom “quick oil change” assembly enables our customers to perform their own maintenance, in a quick and clean manner .

  • A high-temperature relief valve to limit damage due to overheating.

Weather proof control panel
  • Low-voltage transformer, disconnect switch and indicator light.

  • Constructed of fibreglass.

  • An hour meter to monitor pump run time for easy scheduling of maintenance.

Coil-type water heater
  • Electronic pilot ignition and safety controls.

  • Stainless steel outer jacket.

  • Draft diverter.

Weatherproof remote control station
  • 24-volt safe control of soap, rinse and heat.

  • Includes cable and terminations.

Electronic spark ignition
  • Guarantees proper lighting of the heater burner assembly.

  • Ensures that no pilot outage nuisances can occur.

Time delay shutdown
  • The system will shut down automatically after a pre-set time, when not being used.

Chimney dampener
  • Automatically closes after the wash system is shut down.

  • Reduces the risk of freezing the heater coil and eliminates potential downdrafts.

High-pressure soap, foam and wax
:
  • It consists of hydro minder chemical proportioner and stainless steel blending tank for fail-safe diluting of wax or soap.

  • Foam systems with or without the use of compressed air. The best quality manufacturers available.

Mechanical twist timers
:
  • Ensure that the wash system shuts down after 30-60 minutes use.

  • Also enables bypassing the coin boxes in a commercial wash.

Pulsation dampener
:
  • It helps in reducing operator fatigue.

  • Reduces noise level and wear and tear by reducing vibration.

Venting power assist
:
  • This unit runs automatically when the heater is in use to “power” vent the burner.

  • It is used when venting through the wall is preferred rather than through the ceiling.

Preventative maintenance
:
  • Scheduled to cater to your needs and minimize costly downtime.

Hose Festooning
:
  • This unique suspension system is used to keep your hose off the floor where most wear and damage occurs.

Overhead 360-degree boom
  • Keeps hoses off the floor

Stainless steel high-pressure hose reel
  • Canadian Made!

  • Fully serviceable.

packages

Easy Pay Premium Payment Station:



  • Features a stand-alone payment module

  • Accepts credit cards, Interac/debit, gift/fleet cards, mobile payments and key fobs

  • No internet or communication cable required

  • Operates off cellular data

  • Counts up – open transaction (no more beat the clock!)

  • Double your revenue

  • Electronic receipt

  • Web-based reporting

  • Low transaction fees

  • Led display times

  • Your carwash logo on the face plate

  • Water-resistant stainless steel housing

  • Available with 12 position rotary switch or touch screen

easy premium payment station

Mobile Wash Equipment

At Relay Distributing, we pride ourselves in providing only the highest quality portable pressure washers available. Assembled in Canada with only the best possible components. The machines we deal with, are built to last, and our service department has all the most common wear and tear parts to keep your machine in service.



We have the equipment, accessories, and products for every type of pressure wash owner. Whether you use it a couple of times a year, or every day. From Oilfield and Agriculture to the casual residential washer, we have something for everyone.



Stop in at our location in Lloydminster to meet the friendly and knowledgable staff of Relay Distributing, to see which pressure washer meets your needs. Or come in with your ideas and let us help you build a custom unit to suit your needs.





Mobile Wash Equipment oldshowflor



Proud Dealer, Service Centre and Warranty Depot of the Following Canadian Wash Equipment Manufactures:

logo magikist
logo easy kleem
logo dynablast
logo be power
logo Landa
karcher logo

The below models are in stock. Feel free to contact us for a different model to meet your needs or visit the manufacturers website to browse other available models

Landa MHC4-35324E
  • Hot Water Gas Pressure Washer
  • Rated to 3.5 GPM @ 3500 PSI
  • 13HP Electric Start Honda
  • Direct drive Landa pump
  • Diesel/oil heated 12V DC burner
  • With a rugged frame and stainless steel top wrap this unit is durable,

    The 13″ flat free tires, make it very easy to maneuver.

    The control panel is strategically located, allowing you to easily adjust the thermostat and view the hour meter.

  • Adjustable thermostat
  • Hour meter/ tachometer with Digital display, reminds you when maintenance is due
  • High pressure and high temperature protection
  • Rust-free, 10-gallon fuel tank with elevated fuel line to prevent dirt and debris from reaching burner
  • Landa 2HOT4-20024A

    Hot Water Electric Pressure Washer

  • Electric-Powered Diesel-Fired
  • Rated to 3.5gpm @ 2000psi

    5 HP 230V 1Ph 25 amp WEG Motor

  • Belt Drive Landa Pump
  • Diesel/oil heater 230V Burner
  • Auto Start/Stop Time Delay Shutdown
  • Stainless Steel Top Wrap that allows access to the coil within minutes
    Burner is protected by a cover and mounted on the end for easy access

    Redesigned Frame with added Sliding Power Platform to make servicing easier

    Standard Hour Meter with Adjustable Thermostat

    Convenient Control Panel in water-resistant electrical enclosure

    Flat-Free Tires and safety brake

    Easy Kleen EZO2435E-GP

    Hot Water Electric Pressure Washer

  • Electric-Powered Diesel-Fired
  • Rated to 3.5gpm @ 2400psi
  • 5hp 230v 1Ph tech top motor

    Direc Drive Interpump / General Pump

  • Auto Start/Stop Time Delay Shutdown
  • 290,000 BTU Wayne Burner
  • 10' Power Cable
  • 50' Hose
  • Part Number: PWHE2400-3.5-05.0
  • Electric Pressure Washer with Powerease Motor and AR Axial Pump

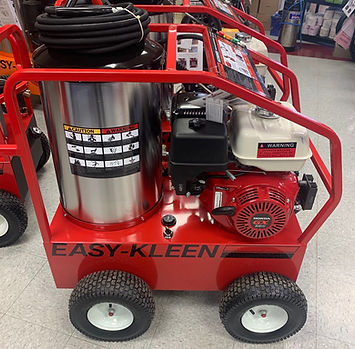

    Easy Kleen EZO4035G-H-GP-12

    Hot Water Gas Pressure Washer

  • Gas-Powered Diesel-Fired
  • Rated to 3.5 GPM @ 4000 PSI

    13HP Electric Start Honda GX390 Engine

    Direct Drive Interpump / General Pump

  • 350,000 BTU Wayne Burner
  • 50' Hose
  • Part Number: PWHG4000-3.5-13
  • Electric Pressure Washer with Powerease Motor and AR Axial Pump
    Easy Kleen EZO4035G-K-EK-12

    Hot Water Gas Pressure Washer

  • Gas-Powered Diesel-Fired
  • Rated to 3.5 GPM @ 4000 PSI

    14HP Electric Start Kohler CH440 Engine

    Direct Drive Easy Kleen pump

  • 350,000 BTU Wayne Burner
  • 50' Hose
  • Part Number: PWHG4000-3.5-14
  • Electric Pressure Washer with Powerease Motor and AR Axial Pump
    Dynablast H3025DEF1

    Hot Water Electric Pressure Washer

  • Electric-Powered Diesel-Fired
  • Rated to 3.0 GPM @ 2500 PSI
  • 5hp 230 V 1PH 30 A electric motor

    Direct Drive Interpump/General Triplex Pump

  • Auto Start/Stop Time Delay Shutdown
  • 300,000 BTU Beckett Burner
  • 23' power cable
  • 50' Hose
  • Part Number: PWHE2500-3.0-05.0

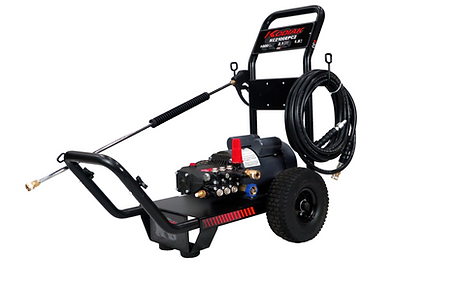

  •  Kodiak 2100 EPC
    • 1000 psi, 2.1 gpm

    • Steel frame and rugged powder-coated

    • 115V Baldor electric motor

    • General pump/interpump triplex with ceramic plungers

    • Adjustable pressure regulator

    • High pressure hose 30’

    • 36” Wand

    •  Adjustable detergent injection

    • Four nozzles (0⁰, 15⁰,  25⁰, and soap)

    Kodiak 2100 EPC
    Kodiak 3250 EPC
    • 2500 psi, 3 gpm

    • Steel frame and rugged powder-coated

    • 220V Baldor electric motor

    • General pump/Interpump triplex

    • Adjustable pressure regulator

    • 30’ High pressure hose

    • 36” Wand

    • Adjustable detergent injection

    • Four nozzles (0⁰, 15⁰, 25⁰, and soap)



    Kodiak 3200 EPC
     Kodiak KC3250GPC
    • 2500 psi, 3 gpm

    • Steel frame and rugged powder-coated

    • 6.5hp Honda GX engine with oil alert

    • General pump/Interpump triplex

    • Adjustable pressure regulator

    • 30’ High pressure hose

    • 36” Wand

    • Adjustable detergent injection

    • Four nozzles (0⁰, 15⁰, 25⁰, and soap)

    Kodiak KC3250GPC
     Kodiak KC4350GPC
    • 3500 psi, 4 gpm

    • 13hp Honda GX engine with oil alert

    • General pump/Interpump triplex

    • Adjustable pressure regulator

    • 50’ High pressure hose

    • 36” Wand

    • Adjustable detergent injection

    • Four nozzles (0⁰, 15⁰, 25⁰, and soap)

    Kodiak KC4350GPC
    2,700 PSI - 2.5 GPM Gas Pressure Washer with Powerease 225 Engine and AR Axial Pump

    Powerease engines are cost effective and designed to be reliable.

    Direct drive system connects the engine to the pump for a compact and efficient power transfer.

    Maintenance-free axial pump includes a built-in soap injector and delivers excellent performance.

  • Built-in unloader effectively regulates water flow in a compact design
  • Accessories include a high-pressure hose, spray gun wand assembly, and spray nozzles so that it can be used right out of the box.
  • Powder-coated steel frame with storage for accessories, and 11” flat-free tires easily handle going over rough terrain.

    Gas Pressure Washer with Powerease 225 Engine and AR Axial Pump
    1,500 PSI - 1.6 GPM Electric Pressure Washer with Powerease Motor and Triplex Pump

    Electric motor is rated at 1.5 HP, quiet running, and can be safely used indoors.

    Triplex pump with forged brass manifold, ceramic coated pistons, built-in soap injector and thermal valve.

    Built-In unloader effectively regulates water flow in a compact design.

    Accessories include a high-pressure hose and spray gun wand assembly with a variable nozzle so that it can be used right out of the box.

    Lightweight hand-carry model allows it to be easily repositioned around the workspace. Rubber anti-vibration pads keep it secure once placed.

    1,500 PSI - 1.6 GPM Electric Pressure Washer with Powerease Motor and Triplex Pump
    2,050 PSI - 1.4 GPM Electric Pressure Washer with Powerease Motor and AR Axial Pump

    Versatile electric pressure with an innovative design so it can be on a mobile cart, wall mount, or hand-carried depending on what best suits the situation.

    Electric motor is rated at 1.3 HP and has a total start system that automatically shuts off the pressure washer when the trigger is released to prolong the life of the pump.

    Equipped with a GFCI plug that greatly reduces the risk of electric shock.

    Maintenance-free axial pump with an onboard soap system delivers excellent performance.

    Accessories include a spray gun with quick connect fittings, a 20’ high-pressure hose, and four spray nozzles.

    Unique frame switches from a wheeled cart, to hand-carried, and can be mounted to a wall with an optional hanger kit.

    The body is enclosed in a plastic shell that protects the internals, helps dampen the sound and includes integrated storage slots for all the accessories.

    Electric Pressure Washer with Powerease Motor and AR Axial Pump

    Previously stocked and special order machines.

    EQBEHW4013HG

    Honda GX390 engine

  • 4.0 GPM 4000 psi general pump
  • Powder coated steel frame - protects components while allowing for easy access to use and maintain

    13" flat-free tires for stability and rough terrain

    Built in lift point for convenient loading and unloading

    Mounting brackets included for quick installation onto trucks or trailers by removing the wheels

  • Accesories included
    - 50' high pressure hose
    -spray gun wand assembly
    -five spray nozzles
  • Dynablast H4035DGF Hot Water Pressure Washer
    • 3500 psi, 3.8 gpm

    • Downstream adjustable chemical injector: For low-pressure soap and chemical injection.

    • Quick connect hose connectors: For easy on/off connections and tangle free hoses.

    • Stainless steel coil skin: It is a durable rust resistant skin. Schedule 80 heating coil and 300,000 BTU burner.

    • Four quick connect nozzles: Colour-coded nozzles included are 0°, 15°, 25°, and Soap.

    • High quality Italian easy pull gun and 48" lance

    • 50′ high-pressure hose: Durable non-marking steel braided hose.

    • Separate unloader with easy start valve: Easily adjustable pressure control knob.

    • Heavy-duty steel frame with protective roll cage and a powder coated finish.

    • Large thermostat dial to adjust water temperature with ease.

    • Replaceable fuse for electronic overload protection.

    • High-quality triplex pump: All Dynablast pressure washers use GP/Interpump pumps with  5-year warranty.

    • Easy access control panel, makes servicing your machine fast and easy.

    • 13″ solid tires, no more flat tires.

    • Large fuel oil tank, holds 4.4 gallons of No.1 or 2 Fuel Oil. Also includes a fuel indicator gauge.

     Dynablast H4035DGF Hot Water Pressure Washer
    Dynablast H4030BEF1

    Dynablast hot water washer

    7.5hp 230 V electric motor

    3000 PSI @ 3.8 GPM Interpump Triplex Pump

  • 315,000 BTU
  • Landa PHW4-22024A
  • Hot Water Electric Pressure Washer
  • Rated to 4gpm @ 2000psi
  • 6.2 HP 230V 20 amp
  • Belt Drive Landa pump
  • Diesel/oil heated 230V burner
  • Cool-Bypass* technology limits temperature in the pump during periods of inactivity, prolonging the equipment life.

    Snap ‘N Go kits allow easy upgrades to time delay shutdown, wireless remote operation, or auto start-stop.

    This industrial series includes our large frame LT Pump affixed to our proprietary Tru-Trac belt tension system, and an oversized 10-gallon diesel fuel capacity allows for big jobs and long run time.

    The integrated float tank and metering valve allows for the easy introduction of detergents when needed. Whether cleaning hog barns, oilfield and farm equipment, or fleet vehicles, the PHW series is built to deliver top quality results.

    EQKAHDS3.5/30

    Karcher hot water washer

    Electric start Honda motor

    3500 PSI @ 3.5 GPM Karcher pump

    2,000 PSI - 3.5 GPM Electric Pressure Washer with Baldor Motor and General Triplex Pump
    • 5.0 hp Baldor motor delivers energy efficiency and reliability suited for commercial applications.

    • Direct drive system connects the engine to the pump for a compact and efficient power transfer.

    • Commercial grade Italian made General triplex pump featuring die-cast body with improved heat dissipation, forged brass manifold, and solid ceramic plungers.

    • The external unloader provides enhanced cooling, and is easy and cost effective to service in the future.

    • The thermal releif valve allows use of hot/warm water without concern of overheating the pump

    baldor-triplex-pumping
    4,400 PSI - 4.0 GPM Gas Pressure Washer with KOHLER CH440 Engine and Triplex Pump

    Rugged Kohler engine reliably drives the pump with power to spare. Designed to be used all day, every day.

    Direct drive system connects the engine to the pump for a compact and efficient power transfer.

    Commercial grade Italian made General triplex pump featuring die-cast body with improved heat dissipation, forged brass manifold, and solid ceramic plungers.

    The external unloader provides enhanced cooling, and is easy and cost effective to service in the future.

    The thermal relief valve allows use of hot/warm water without concern of overheating the pump

    4,400 PSI - 4.0 GPM Gas Pressure Washer with KOHLER CH440 Engine and Triplex Pump
    2,500 PSI - 3.0 GPM Gas Pressure Washer with Honda GX200 Engine and General Triplex Pump

    Commercial Honda engine with excellent weight to power ratio. Designed to be used all day, every day.

    Direct drive system connects the engine to the pump for a compact and efficient power transfer.

    Commercial grade Italian made General triplex pump featuring die-cast body with improved heat dissipation, forged brass manifold, and solid ceramic plungers.

    The external unloader provides enhanced cooling, and is easy and cost effective to service in the future.

    The thermal releif valve allows use of hot/warm water without concern of overheating the pump

    Honda GX200 Engine and General Triplex Pump
    2,500 PSI - 3.0 GPM Gas Pressure Washer with KOHLER SH270 Engine and Triplex Pump

    Rugged Kohler engine reliably drives the pump with power to spare. Designed to be used all day, every day.

    Direct drive system connects the engine to the pump for a compact and efficient power transfer.

    Commercial grade Italian made General triplex pump featuring die-cast body with improved heat dissipation, forged brass manifold, and solid ceramic plungers.

    The external unloader provides enhanced cooling, and is easy and cost effective to service in the future.

  • The thermal relief valve allows use of hot/warm water without concern of overheating the pump
  • KOHLER SH270 Engine and Triplex Pump

    Hose Reels

    Keep your washbay area or mobile unit neat and tidy with one of our many hose reels. Avoid your hoses getting dirty, broken, or being tripped over. We carry all of the related parts and can also provide you with a custom set-up to fit your specific needs.



    Magikist
    hannay reels
    general pump
    MAGIKIST Stainless Steel Hose Reel

    Rugged stainless steel withstands years of use and will not rust.

    Sturdy 12 gauge base can be easily wall or floor mounted.

  • Sizes: 150' or 300' of 3/8" hose.
  • High pressure brass swivel rated to 3000 PSI.

  • Adjustable brake to prevented unwanted roll out.
  • Manual rewind crank.
  •        Inventory number: PTHSMR100SS

    KOHLER SH270 Engine and Triplex Pump
    General Pump Black Steel Hose Reel
    • Black steel for a clean sleek look.

    • High pressure swivel rated to 4000 PSI.

    • Sizes: 50', 100', 150' or 200' of 3/8" hose.

    • Manual rewind crank.

    • Locking mechanism to hold reel in place.

              Inventory number: PTHSHR100

    brushless

    Wash Bay Products

    We provide top-notch accessories and chemical products to get back that sparkle and shine. We stock a complete

    selection of productsfor all your washbay needs. Not only do we offer the highest quality product, but we are also

    proud to say that the vast majority of them are Made in Canada!



    Take a look below at some of our most popular stock items. Dont hesitate to call us, we have countless other products,

    and custom chemical blending available.

     Breakaway

    One of our most popular and wide spread products. Breakaway is a super concentrated, industrial strength cleaner and degreaser. It will melt away all sorts of grease. It can dissolve heavy soot deposits and it makes old baked on bug gut stains disappear. At lower dilutions it can be used for much lighter tasks as well. Breakaway is a custom designed product exclusive to Relay Distributing in Lloydminster. Stop in and pickup a jug to try it for yourself. You'll love this all around amazing product.



    4L | Inventory number: DEPGB4

    20L | Inventory number: DEPGB20

    205L | Inventory number: DEPGB205

     Breakaway
     Bug Remover Concentrate

    An concentrated liquid cleaner. When diluted makes a very effective cleaner for removing oil residue, dirt, and bugs. Used in windshield washer reservoirs, and at gas station window cleaning stations.

    4L | Inventory number: CWRJBR4

    20L | Inventory number: CWRJBR20



    Diluted to 50:1 (one jug can make you a barrel!)



    bug remover concentrate
     Diamond Shine Spray Wax

    A highly concentrated polish and surface protection compound with the added benefit of carnauba wax for enhanced shine, rust inhibition and water repellency.

    4 L | Inventory number: CWPGAUS4

    20 L | Inventory number: CWPGAUS20



    Diluted to 350:1



    diamond shine spray wax
    Hurricane Truck Wash Powder

    This wash product has been recently improved to hold its spot at the head of the pack. With our testing and product comparisons, we are sure that Hurricane will give you the results that you are looking for every time.



    This wash powder is a highly concentrated, powdered vehicle wash that is effective at removing baked on road scum, and is also safe for all painted and unpainted surfaces. It performs well in hard water conditions, while it can also be used in both cold and hot water applications. A very high foamer for guaranteed customer satisfaction and does not leave behind costly build up in pumps or heater coils.



    Free on loan mixing barrels will be provided by us for use of this product at your location.





    20kg | Inventory number: CWMUF01797

    50kg | Inventory number: CWMUF01798

    181kg | Inventory number: CWMUF01799

    diamond shine spray wax

    Give your vehicles a new look with our car/truck wash products and equipment in Lloydminster. With over 30 years of experience, we aim at providing innovative, customer-driven solutions. We work closely with our suppliers and manufacturers to constantly improve and stay on top of the ever changing industry. Our high quality products and equipment keep your vehicles looking their best.

    Hurricane

    Foamer Systems

    At Relay Distributing in Lloydminster, Foam is always a topic of conversation. We know that foaming our soap provides the best results in the fastest time frame, while minimizing waste. As our mission statement says, our goal is to provide our customers with the best possible value for their dollar. We stock the most common types of foamers, but what we sell is only the highest quality options on the market. Our custom systems take your wash to the next level of performance and efficiency!

    High Pressure Spray Foam System (Bottle Style)

    Consisting of a high-pressure, one-piece foam injector and nozzle, with either a 64 or 32oz bottle. This system has adjustable concentration for use with various types of chemicals for different applications. The bottle/foamer is quickly coupled to the wash gun while foaming and replaced with the regular wand for rinsing.



    High Pressure Spray Foam System (Bottle Style)

    High Pressure Spray Foam System (Quick-coupled)

    Consisting of a stainless-steel high-pressure foam injector, along with orifices to tune the injector to match the specs of the pump, the foam nozzle with coupler, and pick-up line assembly. The foam injector is installed at the pump, only the foam nozzle is coupled to the spray wand and then replaced with the regular spray tip for rinsing, producing the same foam output as the dual lance.

    High Pressure Spray Foam System (Quick-coupled)

    High Pressure Spray Foam System (Dual Lance)

    Consisting of a stainless-steel high-pressure foam injector, foam nozzle, dual lance and pick-up line assembly.  The foam injector is installed at the pump, switching from foam to rinse is made easy by a simple twist of the valve built into the handle of the dual lance.



    High Pressure Spray Foam System (Dual Lance)

    High Pressure Spray Foam Injector with By-Pass

    For use when maximum pressure is required for power rinsing. The bypass replaces the stainless-steel injector in either the quick coupled, or the dual lance foamer options.

    High Pressure Spray Foam Injector with by-pass

    Chemical Dispensing Systems

    We custom design and stock various types of systems for all sorts of products and different applications. From acids and heavy crude degreasers, to janitorial products, we have designed systems to provide solutions for all chemicals requirements.



    Chemical Dispensing Systems

    Pressurized Chemical Sprayer

    This custom-built chemical sprayer has all the good stuff, including forged brass fittings, Viton seals, a pressure relief valve rated for 115 psi and an industrial wand/hose. Fill, pressurize with your compressor and spray. Easy!



    Pressurized Chemical Sprayer

    Parts Lookup

    Make

    Model

    Serial number

    Description of part required / Part number

    Name*

    Company name*

    Phone number*

    Email*

    This is just a preview/summary of some of the things we deal with everyday. Give us a call about anything pressure wash/steamer related.

    bgImage

    The Choice for Dedication and Professionalism

    We take pride in meeting our customer’s needs and stay focused on caring for our customers with our personal service and availability.

    bottom of page
